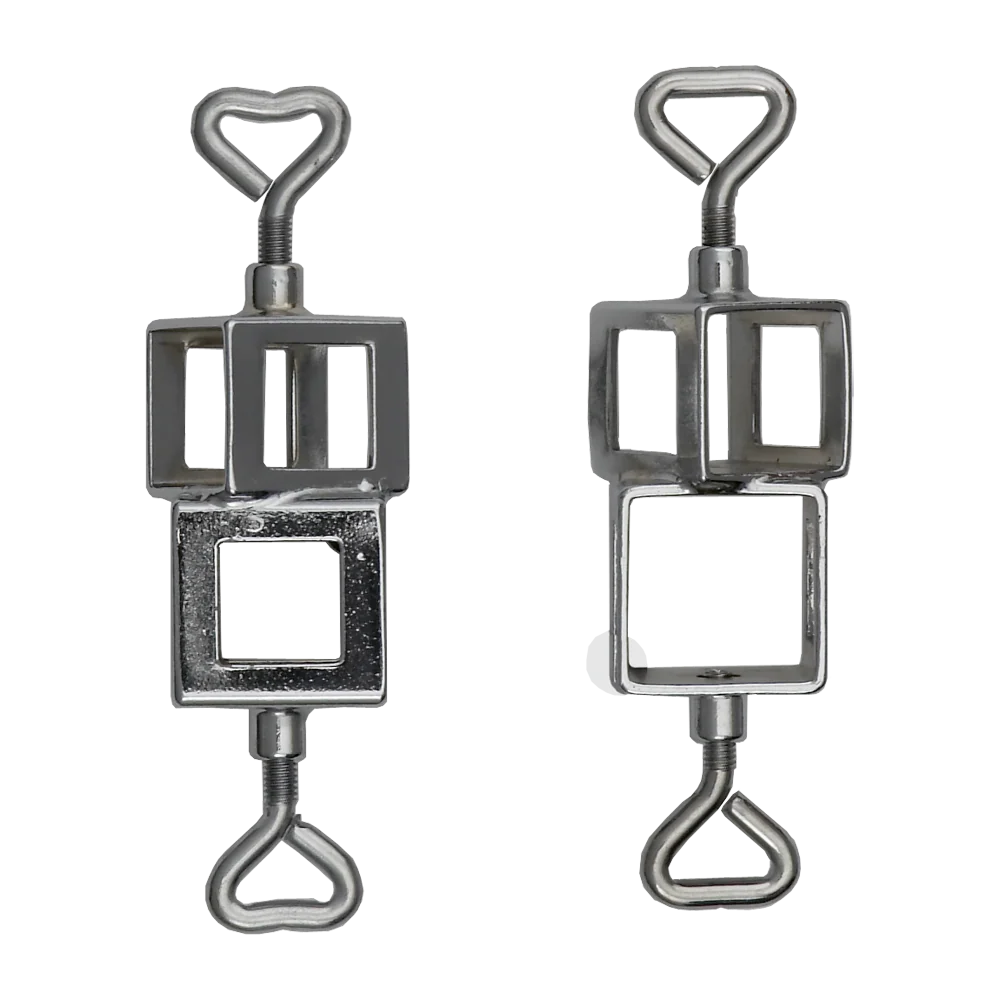

Multi-functional twin adjusting ring for the connection of square tubes 20 mm, 25 mm and 30 mm, adapter for the combination stand system 300 series (square 30 mm).
Round tubes Ø 20 mm can be clamped into the square 20 mm insert hole as well.

1st surface: insert holes square 20/square 20 mm
2nd surface: insert holes square 25/square 30 mm
For connection of:
- 1 square tube 20 mm und 1 square tube 25 mm (30° offset)
- 1 square tube 20 mm und 1 square tube 30 mm (30° offset)
- 1 square tube 30 mm und 1 square tube 25 mm (30° offset)
- 2 square tubes 20 mm (30° offset)
- 2 main tubes Ø 20 mm (30° offset)

Ø square 20 mm Fits e.g.
basic holder 240, 240L, 240S
transverse tube 223 - 227, 122, 122S
transverse tube T-shaped 114K, 114L, 114KS, 114LS
transverse tube/distance piece 225
main tube 202 - 209

Ø square 25 mm Fits e.g.
transverse tube 125, 125S
distance piece 222S, 225G
angled insert tube 113

Ø square 30 mm Fits e.g.
supporting tube 112
transverse tube (300 series) 320 - 330Z
angled bar (300 series) 336 - 339



Combination examples from our range:

Combination stand/gibbet stand X and XII

All combination stand parts are made of high-quality steel and high-gloss chrome-plated.
